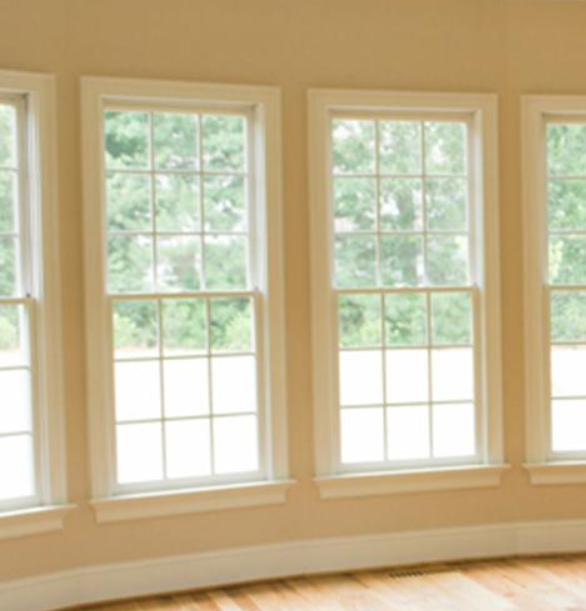

WinDoor Aluminum Single Hung Window
The WinDoor 4000 series single hung window contains a lower sash that operates vertically while an aluminum frame holds the glass in a fixed position above. While many consider the single hung window to be common for residential and commercial structures, the WinDoor 4000 is the perfect high-impact product that offers great NFRC ratings. Heavy-duty materials are used with robust spiral balancers, various glass options, and optional meeting-rail reinforcement … all backed by the WinDoor name.
Finishing Options
Standard Single WinDoor Paint
10-Year Warranty
Hatteras White
Bermuda Bronze
Custom Paint Available
Two-Tone Paint Available
5-Year Warranty
Clear Anodized
3-Year Warranty
White
Bronze
Custom Paint Available
Two-Tone Paint Available
GLASS OPTIONS
Impact-Resistant & Non-Impact-Resistant Glass
-Large Variance of Colors
-Available in Low-E
-Insulated (Includes airspace for energy efficiency)
-Single Glazed (lami only)
Grilles (Muntin) Options
-Insulated Glass – Applied muntins on both exposed surfaces of the glass and muntins within the airspace
-Single Glazed – Applied muntins on both exposed surfaces of the glass
-Standard & Custom Patterns Available
-Flat Bar Muntins – 1” and 2″ Profiles Available
-Contoured Muntins – 1” and 2-3/4″ Profiles Available
TECHNICAL INFORMATION
-Frame Depth – 3-1/2”
-Size
Maximum Single Vent 53” x 96”, Factory Twins 107” x 76”
Minimum 16” x 36”
-Glazing
Insulated Non-Impact
Insulated LM & SM Impact
-Performance
Non-Impact up to +/-110 psf
Impact up to +120/-150 psf
-Water
ASTM: 22.5 lbs
HVHZ: 18 lbs
-Frame Options
Equal Leg
Fin Frame
Flange Frame
